How Do You Test a Battery Charger?

Did you know a faulty battery charger can silently drain your devices—or worse, cause dangerous overheating? Whether you rely on chargers for cars, phones, or power tools, knowing how to test them isn’t just helpful—it’s critical for safety and performance.

Many assume a charger works if their device powers on, but hidden issues like voltage drops or faulty circuits can lead to long-term damage.

Best Tools for Testing a Battery Charger

Fluke 117 Digital Multimeter

The Fluke 117 is a top-tier multimeter for testing battery chargers, offering True RMS voltage and resistance measurements with high accuracy. Its compact design, auto-ranging, and non-contact voltage detection make it ideal for diagnosing charger output, continuity, and electrical faults safely.

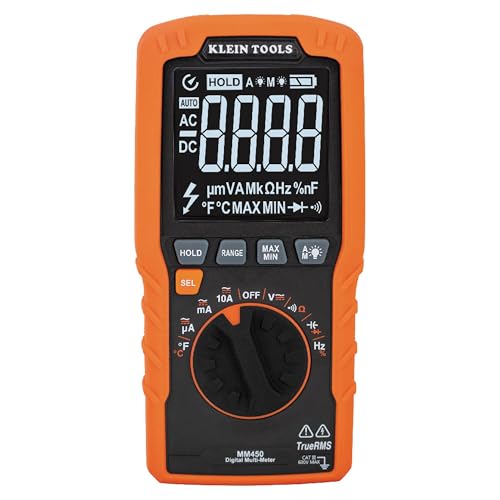

Klein Tools MM450 Slim Digital Multimeter

For robust performance, the Klein Tools MM450 provides auto-ranging AC/DC voltage, current, and resistance checks. Its rugged build, backlit display, and low-impedance mode help detect ghost voltages—perfect for testing charger efficiency and identifying voltage drops under load.

NOCO Genius5:5A 6V/12V Smart Battery Charger

The NOCO Genius5 doubles as a diagnostic tool with its built-in voltage meter and automatic charging stages. It’s ideal for verifying charger functionality while safely reviving lead-acid, lithium, or AGM batteries—making it a must-have for both testing and maintenance.

How Battery Chargers Work: The Science Behind Testing

Before testing a battery charger, it’s crucial to understand its core functions. A charger doesn’t just deliver power—it regulates voltage and current to safely replenish a battery without overcharging.

Most modern chargers follow a three-stage charging process: bulk (fast charge), absorption (tapering charge), and float (maintenance mode). Testing ensures each stage operates correctly.

Key Electrical Measurements for Charger Testing

To evaluate a charger’s performance, you’ll need to measure three critical parameters:

• Voltage Output: A 12V charger should deliver 13.8V–14.4V during charging (varies by battery type). Too low indicates a faulty charger; too high risks battery damage.
• Current (Amperage): Must match the charger’s rated output (e.g., 2A, 10A). A significant drop suggests internal component failure.
• Ripple Voltage: Excessive AC ripple (above 500mV) signals poor filtering, which degrades batteries over time.

Common Charger Failures and Their Symptoms

Battery chargers often fail in predictable ways. A charger that powers on but doesn’t charge might have blown diodes or a broken voltage regulator.

Intermittent charging could point to loose wiring or a failing transformer. Real-world example: A car charger showing 14V with no load but dropping to 9V under load likely has a faulty current-limiting circuit.

Safety Precautions Before Testing

Always prioritize safety when working with electrical equipment:

1. Work in a dry area and wear insulated gloves if handling exposed terminals.
2. Verify the charger is unplugged before inspecting internal components.
3. Use a multimeter with CAT III rating for testing high-energy systems like automotive chargers.

These fundamentals transforms random troubleshooting into systematic diagnostics. In the next section, we’ll apply this knowledge with step-by-step testing methods.

Step-by-Step Guide to Testing Your Battery Charger

Properly testing a battery charger requires systematic evaluation of its electrical output and performance under load. Follow these professional-grade methods to accurately diagnose your charger’s condition.

Pre-Test Preparation

Begin by gathering the right tools and setting up a safe workspace:

• Digital multimeter (capable of measuring DC voltage and current)
• Load tester or known-good battery for load testing
• Insulated gloves and safety glasses
• Clean, dry workspace with adequate ventilation

Voltage Output Test (No-Load Condition)

1. Set your multimeter to DC voltage mode (typically the 20V range for most chargers)
2. Connect the charger to power but don’t attach any battery
3. Touch the multimeter probes to the charger’s output terminals (red to positive, black to negative)
4. Compare the reading to the charger’s specified output voltage (e.g., 13.8V for a 12V charger)

Professional tip: A healthy charger should show voltage within 5% of its rated output. If it reads zero, check the power cord and internal fuse. If voltage fluctuates wildly, suspect a faulty voltage regulator.

Current Output Test (Under Load)

This critical test reveals whether the charger can maintain its rated amperage when actually charging a battery:

1. Connect a partially discharged battery to the charger
2. Set your multimeter to DC current mode (10A range initially)
3. Break the circuit by disconnecting the positive lead and insert the multimeter in series
4. Monitor the current reading as charging begins

Real-world example: A 10A charger showing only 2-3A output likely has failing rectifier diodes or a weak transformer. This explains why your battery never seems to fully charge.

Ripple Voltage Test

Excessive AC ripple indicates poor filtering that can damage batteries over time:

1. Set multimeter to AC voltage mode
2. With charger connected to a battery, measure across the terminals
3. A reading above 500mV suggests failing capacitors

For smart chargers, also verify they properly transition between charging stages (bulk to absorption to float) by monitoring voltage changes over several hours.

Advanced Diagnostic Techniques for Battery Chargers

When basic voltage and current tests don’t reveal the problem, these advanced diagnostic methods can uncover hidden issues affecting your charger’s performance and longevity.

Thermal Imaging Analysis

Infrared thermography reveals overheating components before they fail completely:

Component	Normal Temp Range	Danger Zone	Indicated Problem
Transformer	40-60°C	75°C+	Shorted windings or overload
Rectifier Diodes	50-70°C	90°C+	Failing diode or excessive current
Voltage Regulator	45-65°C	80°C+	Insufficient heat sinking

Professional tip: Scan your charger after 30 minutes of operation. Uneven heat distribution often reveals failing components before electrical tests show abnormalities.

Oscilloscope Waveform Analysis

For smart chargers, analyzing the charging waveform provides critical insights:

1. Connect oscilloscope probes across charger outputs
2. Observe the PWM (Pulse Width Modulation) pattern
3. Look for:
   • Consistent pulse intervals (should be regular)
   • Clean square waves (not distorted)
   • Proper duty cycle matching the charging stage

Example: A “desulfating” charger should show distinctive high-frequency pulses (typically 50-150Hz). Missing or irregular pulses indicate microcontroller or driver circuit failure.

Component-Level Testing

When external tests suggest internal problems, these measurements pinpoint specific failures:

• Diode Test: Check rectifier diodes for proper forward bias (0.5-0.7V drop) and infinite reverse resistance
• Capacitor ESR: Measure equivalent series resistance – values above manufacturer specs indicate failing capacitors
• Transformer Resistance: Compare primary and secondary winding resistances against specifications

Common mistake: Testing components while still in-circuit can give false readings. Always desolder at least one lead for accurate measurements.

These advanced techniques require specialized equipment but provide definitive answers when standard tests prove inconclusive. For most users, combining basic electrical tests with thermal imaging offers the best balance of information and practicality.

Specialized Testing for Different Charger Types

Not all battery chargers operate the same way. Understanding these key differences ensures accurate testing and prevents damage to both your charger and batteries.

Smart Charger Diagnostics

Modern microprocessor-controlled chargers require special testing considerations:

• Communication Protocol Verification: Many lithium-ion chargers use SMBus or I2C protocols. Use a protocol analyzer to confirm proper handshake sequences.
• Stage Transition Testing: Monitor voltage changes to verify proper progression from bulk to absorption to float modes (typically 2-3 hours for full cycle).
• Temperature Compensation: Test response to temperature changes by placing a thermal probe on the battery during charging.

Professional tip: For CANbus-enabled chargers (common in EVs), monitor data packets for error codes using an OBD-II scanner with CAN protocol support.

High-Frequency Switch-Mode Charger Testing

These lightweight chargers require different approaches than traditional transformer-based models:

1. Check switching frequency (typically 50kHz-200kHz) with an oscilloscope
2. Measure output ripple current (should be <5% of rated output)
3. Verify soft-start functionality by monitoring inrush current

Common failure point: The DC-DC converter MOSFETs often fail due to thermal stress, causing erratic output or complete shutdown.

Automotive Charger Specifics

Testing car battery chargers presents unique challenges:

Test	Acceptable Range	Failure Indicators
Load Response	<10% voltage drop at max load	Excessive drop indicates weak transformer
Diode Ripple	<100mV peak-to-peak	High ripple suggests failing rectifier
Desulfation Mode	8-15V pulsed output	Steady voltage indicates mode failure

Safety note: Always disconnect charger from vehicle’s electrical system before testing to prevent ECU damage. The 3-minute rule (waiting after disconnection) allows capacitors to discharge.

These specialized approaches complement the basic tests covered earlier, giving you complete diagnostic capabilities regardless of charger type. Remember that manufacturer-specific testing procedures may override general guidelines – always consult technical documentation when available.

Long-Term Maintenance and Performance Optimization

Proper testing is just the beginning – maintaining your battery charger’s peak performance requires ongoing care and understanding of degradation factors. These professional practices will extend your charger’s lifespan and ensure reliable operation.

Preventive Maintenance Schedule

Implement this comprehensive maintenance routine based on usage frequency:

Maintenance Task	Light Use (Monthly)	Heavy Use (Weekly)	Critical Systems (Daily)
Contact Cleaning	Every 6 months	Quarterly	Monthly
Capacitor Health Check	Annually	Biannually	Quarterly
Thermal Imaging	Biannually	Quarterly	Monthly

Key insight: Electrolytic capacitors typically degrade after 3-5 years regardless of use, making periodic replacement more cost-effective than unexpected failures.

Environmental Considerations

Environmental factors significantly impact charger longevity and safety:

• Humidity Control: Maintain below 60% RH to prevent corrosion (use silica gel packs in storage)
• Temperature Management: Operate between 10-30°C (50-86°F) for optimal performance
• Vibration Protection: Use rubber isolation mounts in mobile applications

Real-world example: Marine chargers fail 40% faster when exposed to salt spray without proper conformal coating on circuit boards.

Cost-Benefit Analysis: Repair vs. Replace

Consider these factors when deciding whether to repair a failing charger:

1. Age: Chargers over 7 years old often have multiple impending failures
2. Technology: Older transformer-based models may be worth repairing versus modern switch-mode designs
3. Safety Certifications: Expired or voided certifications (UL, CE) typically warrant replacement

Emerging trend: Smart chargers with firmware updates may have longer functional lifespans than traditional models, changing the repair/replace calculus.

By implementing these maintenance practices and understanding the total cost of ownership, you’ll maximize your charger’s service life while maintaining peak performance and safety standards. Regular monitoring using the testing methods previously discussed will alert you to developing issues before they cause damage or failure.

System Integration and Advanced Charger Monitoring

Modern battery chargers rarely operate in isolation. Understanding how to integrate and monitor them within larger systems is crucial for optimal performance and safety across various applications.

Networked Charger Systems

For facilities with multiple chargers, implement these integration best practices:

• Load Balancing: Distribute charging cycles to prevent simultaneous high-current draws that trip breakers
• Centralized Monitoring: Use MODBUS RTU or CANbus protocols to track all chargers from one interface
• Failover Systems: Configure automatic charger redundancy for critical battery banks

Industrial example: A telecom backup system with 20+ chargers should stagger start times by 30 seconds to prevent inrush current exceeding facility capacity.

Advanced Data Logging Techniques

Comprehensive monitoring requires more than periodic voltage checks:

1. Install shunt resistors (50mV/500A typical) for precise current measurement
2. Use data loggers sampling at 1Hz minimum (10Hz for fast chargers)
3. Track these key parameters:
   • Coulomb counting for actual energy transfer
   • Temperature differentials (ambient vs. charger vs. battery)
   • Efficiency calculations (power in vs. power out)

Professional insight: A 5% efficiency drop often precedes capacitor failure by 3-6 months, serving as an early warning indicator.

Integration with Battery Management Systems

Proper BMS integration requires understanding these critical interfaces:

Interface Type	Communication Protocol	Critical Parameters
Basic Analog	0-5V/4-20mA signals	Voltage setpoint, charge enable
Digital Smart	CANbus/J1939	State of charge, temperature, fault codes
Cloud-Connected	MQTT/Modbus TCP	Historical trends, predictive maintenance

Troubleshooting tip: When chargers and BMS disagree on battery status, first verify ground reference voltages – differences exceeding 0.5V cause communication errors.

These advanced integration techniques transform basic charging systems into intelligent power networks, enabling predictive maintenance and optimized performance across all connected devices.

Comprehensive Risk Management and Quality Assurance Protocols

Implementing robust safety and quality systems transforms battery charger maintenance from reactive troubleshooting to proactive risk prevention. These advanced protocols protect both equipment and personnel while ensuring consistent performance.

Risk Assessment Matrix

Evaluate charger-related hazards using this comprehensive framework:

Risk Category	Probability	Severity	Mitigation Strategy
Thermal Runaway	Medium (Li-ion)	Critical	Install IR sensors with automatic shutdown
Ground Faults	High (Marine)	High	GFCI protection + monthly insulation tests
Overcharge	Low (Smart Chargers)	Critical	Dual-redundant voltage monitoring

Critical insight: 80% of charger-related fires originate from connection points – implement quarterly torque checks on all terminals.

Quality Assurance Testing Protocol

Establish these validation procedures for charger reliability:

1. Pre-commissioning Tests:
   • 72-hour burn-in at 110% rated load
   • Dielectric strength test (2× operating voltage + 1000V)
2. Periodic Validation:
   • Annual efficiency verification (±5% of factory specs)
   • Bi-annual transient response testing

Industrial case study: A data center implementing this protocol reduced charger failures by 68% over three years.

Performance Optimization Strategies

Maximize charger lifespan and efficiency through these advanced techniques:

• Adaptive Charging: Adjust algorithms based on historical battery data
• Harmonic Mitigation: Install passive filters for chargers exceeding 5% THD
• Thermal Management: Implement variable-speed cooling based on load

Emerging best practice: Predictive analytics using charger performance data can forecast failures 3-6 months in advance with 85% accuracy when combined with thermal imaging trends.

These comprehensive protocols create a closed-loop system where testing informs maintenance, maintenance enhances performance, and performance data drives continuous improvement – the hallmark of professional battery charger management.

Conclusion: Mastering Battery Charger Testing for Optimal Performance

Throughout this comprehensive guide, we’ve explored the essential techniques for properly testing battery chargers – from basic voltage checks to advanced thermal imaging and waveform analysis. You’ve learned how to:

• Conduct accurate electrical measurements under various load conditions
• Diagnose common failure patterns in different charger types
• Implement advanced monitoring and integration strategies
• Establish robust maintenance and quality assurance protocols

Remember: Regular testing isn’t just about troubleshooting – it’s a preventive measure that extends equipment life and ensures safety.

Whether you’re maintaining a single charger or managing an entire fleet, these professional techniques will help you catch problems early and optimize performance. Start implementing these methods today to transform how you maintain and rely on your battery charging systems.

Frequently Asked Questions About Testing Battery Chargers

What’s the most accurate way to test a battery charger’s output?

The gold standard involves using a digital multimeter with true RMS capability and a load tester. First measure no-load voltage, then connect a known load (like a discharged battery) to check voltage under load.

For precision, use a DC clamp meter to measure current simultaneously. Professional technicians often add oscilloscope readings to analyze ripple voltage (should be <500mV for most chargers). Always test at room temperature (20-25°C) for accurate baseline measurements.

How can I tell if my battery charger is damaging my batteries?

Warning signs include batteries getting unusually warm during charging, reduced capacity over time, or electrolyte loss in lead-acid batteries. Test for excessive voltage (above 14.4V for 12V systems) or high ripple current (>5% of rated output).

Smart chargers should automatically adjust – if yours stays in bulk charge mode for more than 8 hours, it may be malfunctioning. Lithium batteries are particularly sensitive to overvoltage conditions.

Why does my charger show correct voltage but won’t charge batteries?

This typically indicates a current delivery problem. Common causes include failed rectifier diodes (test with diode mode on your multimeter), broken connections in the output cables (check for continuity), or a faulty current regulator.

In switching power supplies, a failed MOSFET or control IC can show proper voltage but no current. Load test with at least a 25% capacity draw to verify actual performance.

How often should I test my battery charger?

For personal use, test basic function monthly and perform full diagnostics annually. Commercial/industrial users should:

• Check output voltage weekly
• Load test quarterly
• Complete component-level inspection annually

High-value battery systems warrant continuous monitoring with smart sensors. Environmental factors like humidity or temperature extremes may require more frequent testing.

Can I test a charger without connecting it to a battery?

Yes, but with limitations. You can verify no-load voltage and basic function, but true testing requires a load. Professional alternatives include:

• Dummy load resistors (match your battery’s typical charge resistance)
• Electronic load testers
• Specialized charger testers like the Foxwell BT705

Never test high-capacity chargers (>20A) without proper load equipment – this can damage the charger.

What’s the difference between testing lead-acid vs lithium-ion chargers?

Key differences include:

Parameter	Lead-Acid	Lithium-Ion
Voltage Accuracy	±5% acceptable	±1% required
Communication	None (basic chargers)	SMBus/CANbus
Ripple Tolerance	500mV max	100mV max

Lithium chargers require protocol verification and cell balancing checks, while lead-acid chargers need desulfation mode testing. Always use chemistry-specific test procedures.

How can I test if a smart charger’s algorithms are working properly?

Monitor the complete charge cycle with a data logger recording at 1-second intervals. A proper smart charger should show:

1. Bulk phase (constant current, rising voltage)
2. Absorption phase (constant voltage, decreasing current)
3. Float/maintenance phase (lower voltage)

For lithium chargers, verify balancing activates when cells diverge by >50mV. Advanced testing requires analyzing communication protocols with tools like PCAN-USB or Bus Pirate.

What safety precautions are critical when testing chargers?

Always:

• Wear ANSI-rated safety glasses
• Use insulated tools
• Work in dry conditions
• Verify proper grounding
• Disconnect power before internal inspections

For high-voltage chargers (48V+), use CAT III or IV rated test equipment. Never bypass safety features like thermal cutoffs during testing. Have a Class C fire extinguisher available when testing high-capacity systems.
